cstm: Center of Spread and Total Margin

Using grid search to characterize ATS and total variation by NFL team.

Casey Caprini
2025-01-01

Intro

cstm Chuckling silently to myself. Used similarly to lol, but when you’re not actually laughing out loud. - Urban Dictionary

Each NFL game has a spread and point total. Over the course of a year, is a team an ‘over’ team, or an under team? Is there any correlation between a team’s over/under and ATS results?

This is the kind of thing I heard someone describing on a recent commute. I wanted to work a grid search example to estimate something without a closed form solution, so I came up with this as a toy problem.

Objective: For games played in week 1 thru 17, find the point which minimizes the total euclidean distance between a team’s ATS margin of victory and the over/under (i,e,. ‘total margin’).

Example: 2024 Pittsburgh Steelers

I’ll pull in the 2024 Pittsburgh Steelers data and plot the ATS and total margin for each of the 16 games played as of week 17.

Show code
# Get 2024 Data
df <- nflfastR::load_pbp(2024) %>%
  filter(
    season_type == "REG" &
      (home_team == "PIT" |
         away_team == "PIT")
  ) %>%
  # Keep only relevant columns
  select(
    game_id, season, week,
    home_team, away_team,
    home_score, away_score,
    result, total,
    spread_line, total_line
  ) %>%
  # Final results are include on each row of each game.
  # For each game, keep only a single instance.
  group_by(game_id) %>%
  slice_head(n = 1) %>%
  ungroup() %>%
  # Calculate margins
  mutate(
    total_margin = total - total_line,
    home_ats_margin =  result - spread_line,
    away_ats_margin = -1L * home_ats_margin
  )

pit_df <-
  # Make a complete PIT record by combining PIT home games
  # with PIT away games.
  bind_rows(
    df %>%
      filter(
        home_team == "PIT"
      ) %>%
      mutate(
        team = "PIT",
        pit_ats_margin =
          home_ats_margin,
        opponent = away_team
      ) %>%
      select(
        week, team, opponent,
        pit_ats_margin, total_margin
      ),
    df %>%
      filter(
        away_team == "PIT"
      ) %>%
      mutate(
        team = "PIT",
        pit_ats_margin =
          away_ats_margin,
        opponent = home_team
      ) %>%
      select(
        week, team, opponent,
        pit_ats_margin, total_margin
      )
  ) %>%
  arrange(week)

pit_df %>%
  ggplot(
    aes(
      x = pit_ats_margin,
      y = total_margin
    )
  ) +
  geom_vline(xintercept = 0) +
  geom_hline(yintercept = 0) +
  geom_nfl_logos(
    aes(
      team_abbr = opponent
    ),
    width = 0.05
  ) +
  scale_x_continuous(
    breaks = seq(-60, 60, by = 6),
    minor_breaks = NULL
  ) +
  scale_y_continuous(
    breaks = seq(-60, 60, by = 6),
    minor_breaks = NULL
  ) +
  coord_fixed() +
  labs(
    x = "Steelers ATS Margin (pts)",
    y = "Game Total Margin (pts)",
    title = "2024 Steelers (Thru Week 17)",
    subtitle = "Logo = Opponent.",
    caption = "Data: nflfastR:load_pbp(2024)"
  ) +
  theme_light()

Next, I’ll make a grid of candidate solutions to check. For each point, I’ll calculate the total euclidean distance between the candidate point and all 16 game results.

Then, I’ll come to a point estimate by averaging over the the 10 points with the best performance (i.e., least total euclidean distance).

I’ll use a contour plot to see patterns in total euclidean distance across the candidate grid to see if this is sensible.

Show code
# Make a grid of values to search over.
pit_candidate_grid <-
  crossing(
    pit_ats_margin = seq(-14, 14, by = 0.5),
    total_margin = seq(-14, 14, by = 0.5)
  ) %>%
  # Metric to be minimized will be euclidean distance
  # from each candidate pair.
  mutate(
    sum_euclidean_dist = NA_real_
  )

pit_iteration_df <-
  pit_df %>%
  mutate(
    euclidean_dist = NA_real_
  )

for(i in 1:nrow(pit_candidate_grid)){
  pit_iteration_df <- pit_iteration_df %>%
    mutate(
      euclidean_dist =
        sqrt(
          (pit_ats_margin - pit_candidate_grid$pit_ats_margin[i])^2 +
            (total_margin - pit_candidate_grid$total_margin[i])^2
        )
    )

  pit_candidate_grid$sum_euclidean_dist[i] =
    sum(pit_iteration_df$euclidean_dist)
}

pit_estimate_df <-
  pit_candidate_grid %>%
  # Take the 10 best candidates...
  slice_min(
    order_by = sum_euclidean_dist,
    n = 10
  ) %>%
  # and average over each component
  # to develop point estimate.
  summarize(
    pit_ats_margin = mean(pit_ats_margin),
    total_margin = mean(total_margin)
  )

pit_candidate_grid %>%
  ggplot(
    aes(
      x = pit_ats_margin,
      y = total_margin
    )
  ) +
  geom_contour_filled(
    aes(
      z = sum_euclidean_dist
    ),
    binwidth = 10
  ) +
  geom_vline(xintercept = 0, color = "white") +
  geom_hline(yintercept = 0, color = "white") +
  geom_nfl_logos(
    data = pit_df,
    aes(
      team_abbr = opponent
    ),
    width = 0.05
  ) +
  geom_point(
    data = pit_candidate_grid %>%
      slice_min(
        order_by = sum_euclidean_dist,
        n = 10
      ),
    color = "red"
  ) +
  geom_point(
    data = pit_estimate_df,
    color = "white",
    shape = 2
  ) +
  scale_x_continuous(
    breaks = seq(-60, 60, by = 6),
    minor_breaks = NULL
  ) +
  scale_y_continuous(
    breaks = seq(-60, 60, by = 6),
    minor_breaks = NULL
  ) +
  coord_fixed(
    xlim = c(-14, 14),
    ylim = c(-14, 14)
  ) +
  labs(
    x = "Steelers ATS Margin (pts)",
    y = "Game Total Margin (pts)",
    title = "2024 Steelers (Thru Week 17)",
    subtitle = "Logo = Opponent. Red = 10 Best Estimates.\nWhite = Estimate (Average Over Red).",
    caption = "Data: nflfastR:load_pbp(2024)"
  ) +
  theme_light() +
  theme(legend.position = "none")

A League-wide Function

Here, I write a function to do this for all teams in the league for a given season.

Show code
# League wide for season
calculate_vegas_margins <-
  function(team_of_interest, season_of_interest = 2024L){

    # Load regular season data for the season of interest.
    df <- nflfastR::load_pbp(season_of_interest) %>%
      filter(
        season_type == "REG" &
          week <= 17L
      ) %>%
      select(
        game_id, season, week,
        home_team, away_team,
        home_score, away_score,
        result, total,
        spread_line, total_line
      )

    # Make a vector of all teams that appear in the season
    # of interest.
    teams <-
      df %>%
      pull(home_team) %>%
      unique() %>%
      sort()

    # Make a data frame of all final game results.
    df_results <-
      df %>%
      group_by(game_id) %>%
      slice_head(n = 1) %>%
      ungroup() %>%
      mutate(
        total_margin = total - total_line,
        home_ats_margin =  result - spread_line,
        away_ats_margin = -1L * home_ats_margin
      )

    home_df <-
      df_results %>%
      rename(
        team = home_team,
        opponent = away_team,
        ats_margin = home_ats_margin,
      ) %>%
      mutate(
        home_away = "home"
      ) %>%
      select(
        season, week,
        team, opponent, home_away,
        total_margin, ats_margin
      )

    away_df <-
      df_results %>%
      rename(
        team = away_team,
        opponent = home_team,
        ats_margin = away_ats_margin,
      ) %>%
      mutate(
        home_away = "away"
      ) %>%
      select(
        season, week,
        team, opponent, home_away,
        total_margin, ats_margin
      )

    long_df <-
      bind_rows(
        home_df, away_df
      ) %>%
      arrange(
        season, team, week
      )

    # Search grid for point that minimizes the
    # Euclidean distance from each games ATS margin
    # and over/under total margin.
    candidate_grid <-
      crossing(
        ats_margin = seq(-14, 14, by = 0.5),
        total_margin = seq(-14, 14, by = 0.5)
      ) %>%
      mutate(
        sum_euclidean_dist = NA_real_
      )

    # Stores total euclidean distance for each
    # candidate pair of ats_margin and total_margin.
    iteration_df <-
      long_df %>%
      filter(
        team == team_of_interest &
          season == season_of_interest
      ) %>%
      mutate(
        euclidean_dist = NA_real_
      )

    for(i in 1:nrow(candidate_grid)){
      iteration_df <- iteration_df %>%
        mutate(
          euclidean_dist =
            sqrt(
              (ats_margin - candidate_grid$ats_margin[i])^2 +
                (total_margin - candidate_grid$total_margin[i])^2
            )
        )

      candidate_grid$sum_euclidean_dist[i] =
        sum(iteration_df$euclidean_dist)
    }

    return_df <-
      candidate_grid %>%
      slice_min(
        order_by = sum_euclidean_dist,
        n = 10
      ) %>%
      summarize(
        ats_margin = mean(ats_margin),
        total_margin = mean(total_margin)
      )

    return(return_df)
  }

2024 NFL Results

Weeks 1-17

Show code
all_teams <-
  load_pbp(2023) %>%
  pull(home_team) %>%
  unique() %>%
  sort()

all_team_results_2024 <-
  map_df(
    .x = all_teams,
    .f = calculate_vegas_margins,
    season_of_interest = 2024L
  ) %>%
  bind_cols(
    df =
      data.frame(
        team = all_teams,
        season = 2024L
      )
  )


all_team_results_2024 %>%
  ggplot(
    aes(
      x = ats_margin,
      y = total_margin
    )
  ) +
  geom_hline(yintercept = 0) +
  geom_vline(xintercept = 0) +
  geom_nfl_logos(
    aes(
      team_abbr = team
    ),
    width = 0.05
  ) +
  scale_x_continuous(
    breaks = seq(-18, 18, by = 3),
    minor_breaks = NULL
  ) +
  scale_y_continuous(
    breaks = seq(-18, 18, by = 3),
    minor_breaks = NULL
  ) +
  coord_fixed() +
  labs(
    x = "Central ATS Margin (pts)",
    y = "Central Total Margin (pts)",
    title = "2024 (Thru Week 17)",
    subtitle = "Logo = Team Point Estimate.",
    caption = "Data: nflfastR:load_pbp(2024)"
  ) +
  theme_light()
Show code
all_team_results_2024 %>%
  arrange(
    desc(ats_margin)
  ) %>%
  select(season, team, everything()) %>%
  DT::datatable(
    colnames =
      list(
        "Season",
        "Team",
        "Central ATS Margin",
        "Central Total Margin"
      ),
    options = list(
      pageLength = 32
    )
  )

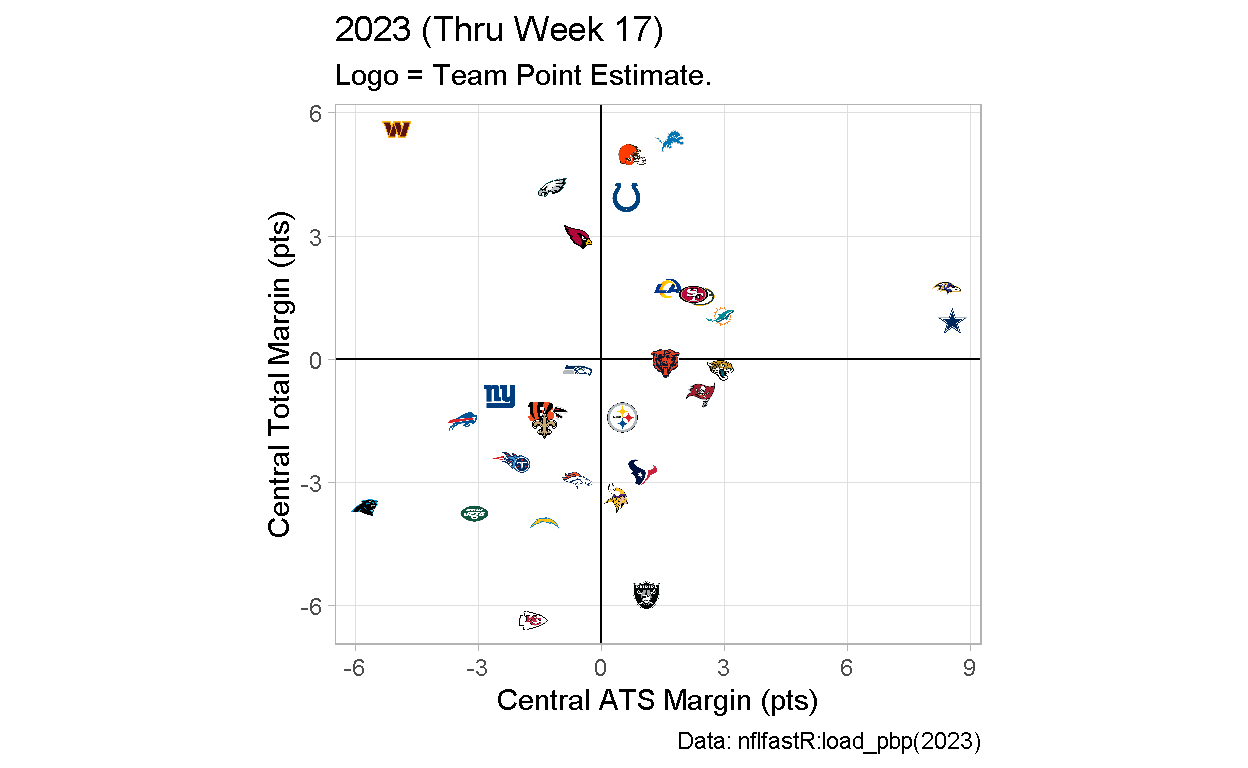

2023 NFL Results

Weeks 1-17

Show code
all_team_results_2023 <-
  map_df(
    .x = all_teams,
    .f = calculate_vegas_margins,
    season_of_interest = 2023L
  ) %>%
  bind_cols(
    df =
      data.frame(
        team = all_teams,
        season = 2023L
      )
  )

all_team_results_2023 %>%
  ggplot(
    aes(
      x = ats_margin,
      y = total_margin
    )
  ) +
  geom_hline(yintercept = 0) +
  geom_vline(xintercept = 0) +
  geom_nfl_logos(
    aes(
      team_abbr = team
    ),
    width = 0.05
  ) +
  scale_x_continuous(
    breaks = seq(-18, 18, by = 3),
    minor_breaks = NULL
  ) +
  scale_y_continuous(
    breaks = seq(-18, 18, by = 3),
    minor_breaks = NULL
  ) +
  coord_fixed() +
  labs(
    x = "Central ATS Margin (pts)",
    y = "Central Total Margin (pts)",
    title = "2023 (Thru Week 17)",
    subtitle = "Logo = Team Point Estimate.",
    caption = "Data: nflfastR:load_pbp(2023)"
  ) +
  theme_light()
Show code
all_team_results_2023 %>%
  arrange(
    desc(ats_margin)
  ) %>%
  select(season, team, everything()) %>%
  DT::datatable(
    colnames =
      list(
        "Season",
        "Team",
        "Central ATS Margin",
        "Central Total Margin"
      ),
    options = list(
      pageLength = 32
    )
  )
